Every unit goes through a load test and measurements to current standards. You receive the inspection report with the measurement results with the extended service package.
Item
What was checked
Power supply and protection
power cable, plug, protection devices, electrical measurements to the current standard
Arc under load
welding test at the duty cycle for the rated current, thermal protection trip
Wire feeder, cooler, torch
rollers, liners, feeder motor, cooler flow and tightness, torch consumables

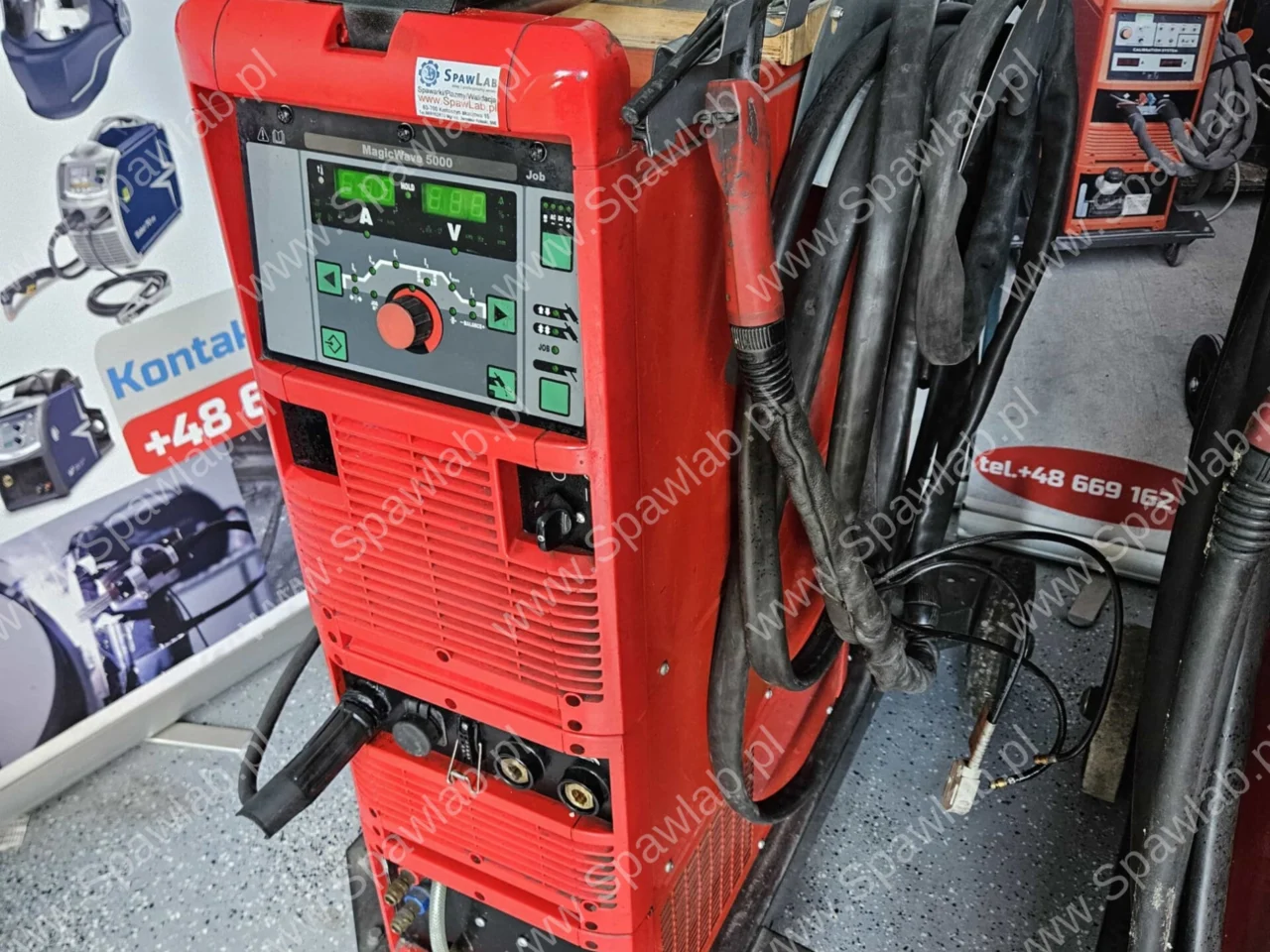

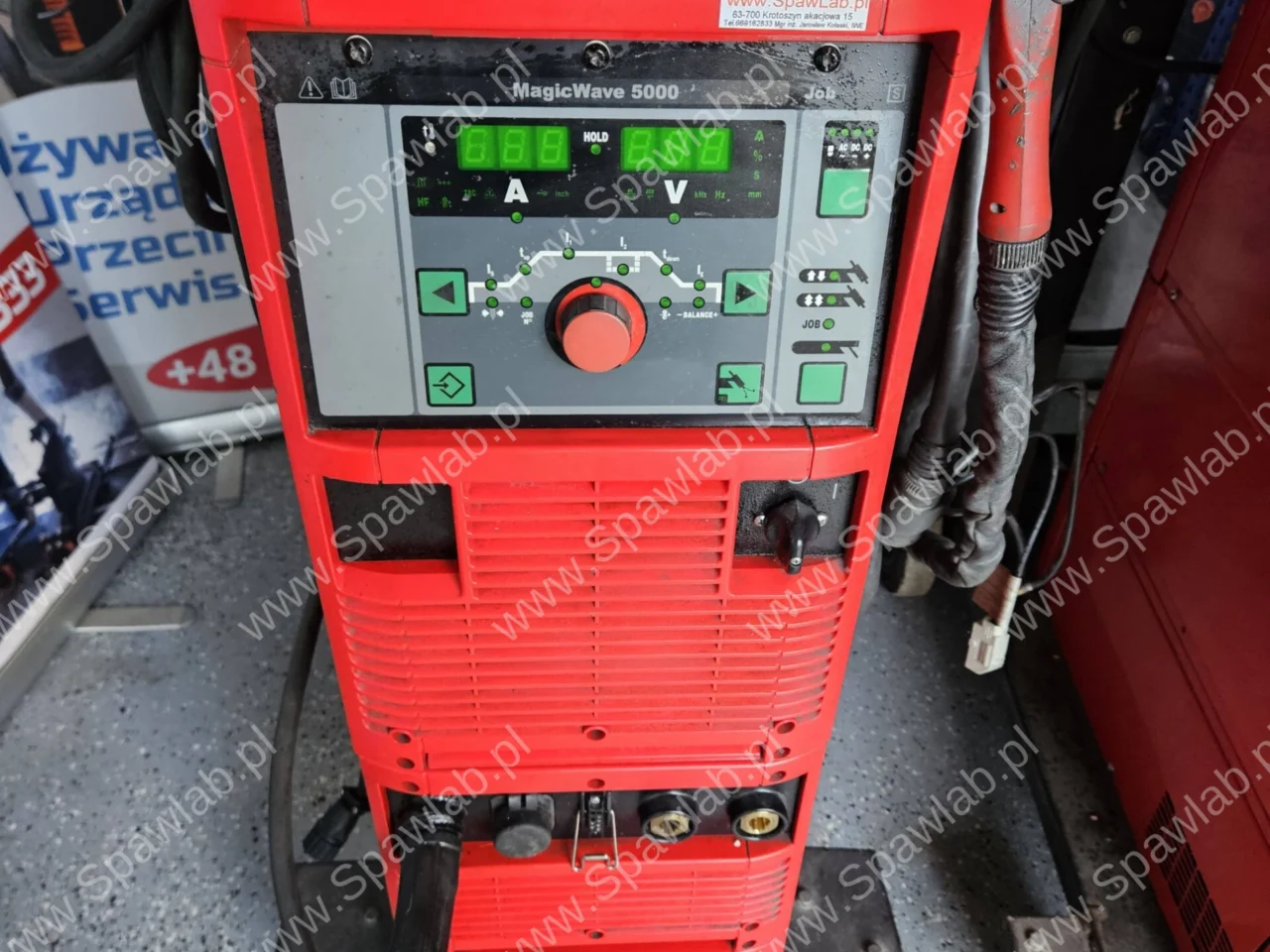

Panel and functions
all modes and programs as described by the manufacturer
Housing and interior
cleaning, signs of use, condition of boards and fans
Service verdict
Condition BCondition B, signs of use
Checked in our workshop in Krotoszyn to the current standards.
Description
About this machine
Fronius MagicWave 5000 is a fully digital, microprocessor controlled TIG AC/DC and MMA source for heavy industry, shipyards and pressure vessel work. Active Wave keeps arc noise down and TAC tacking joins parts without filler, which saves grinding later.
Main data:
TIG welding current 3 to 500 A, 500 A at 40 % duty cycle, 350 A at 100 % at 40 degrees C
MMA welding current 10 to 440 A
mains supply 3 x 400 V plus or minus 15 %, 35 A time delay fuse
liquid cooling built in, enclosure rating IP23, source weight 58.2 kg

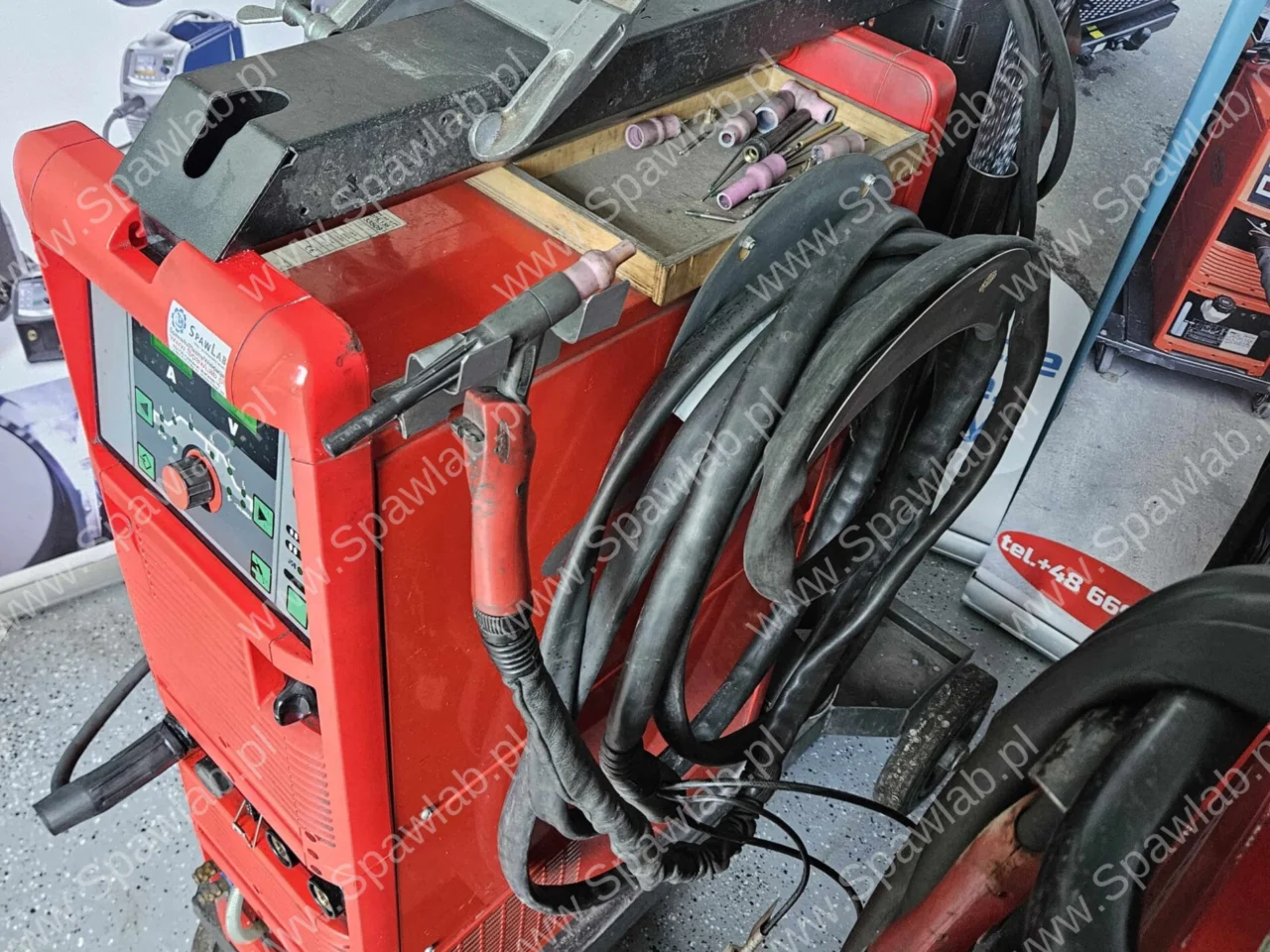

set includes an 8 m torch lead, a transport trolley and a foot pedal
The set is used, complete and fully working, with normal marks of industrial service. Before sale it was checked in our own service workshop in Krotoszyn against current standards.
The price covers the first year of our basic service package. Used machines are sold without a commercial warranty. You get a VAT invoice and we ship on a pallet to any EU country. Companies in the EU with an active EU VAT number are invoiced at 0 % VAT.
Service package for this machine
annual inspection, priority response, replacement machine, discount on parts and wires
