Welding consumables

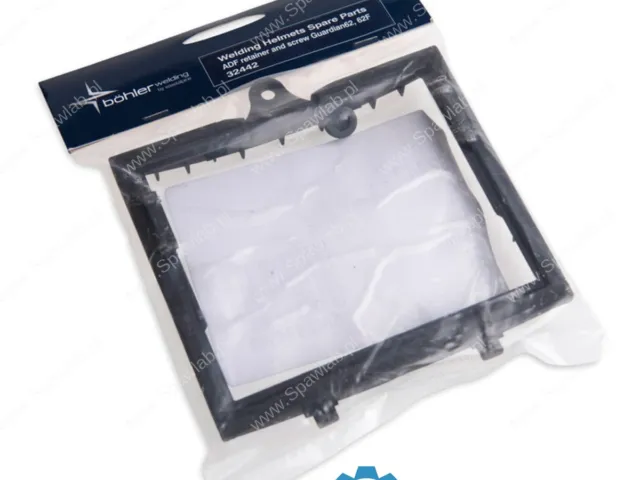

Contact and gas nozzles, diffusers, liners, collets, ceramic cups, tungsten electrodes, sets for plasma torches, feed rolls, helmet lenses and filters plus windows and nozzles for laser heads. Everything is grouped into six sections by equipment type, so you do not have to search by catalogue number.

Choose a section

Or browse everything: Consumables

Product list

Consumables: how to choose

Consumables are the cheapest way to improve weld quality. We have split the range into MIG/MAG torch parts, TIG torch parts, Plasma cutter consumables, Feed rolls and feeder parts, Laser welder parts and Welding helmet parts. If you do not know which torch you have, send a photo of the neck and nozzle to 669 162 833 and we will identify it.

A contact tip wears through wire friction and heat. The bore goes oval, the arc starts to wander and the wire sticks. In continuous work with 1.0 mm wire a tip usually lasts a dozen or so arc hours, with aluminium far less. For higher currents and mechanised work choose copper chromium zirconium tips.

The liner has to match the material. A steel spiral for solid steel wire, a PTFE or plastic liner for aluminium and flux cored wire with a soft sheath. Cut it exactly to length and blow it out at every spool change.

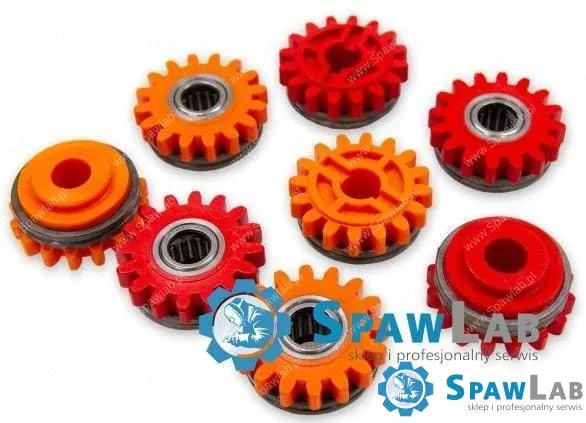

Match feed rolls to the wire: a V groove for solid wire, knurled for flux cored, a U groove for aluminium. Set the pressure so the wire does not slip when stopped by hand but is not flattened either.

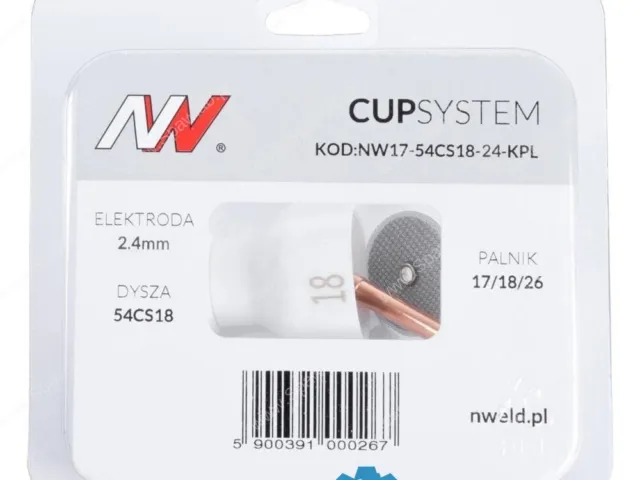

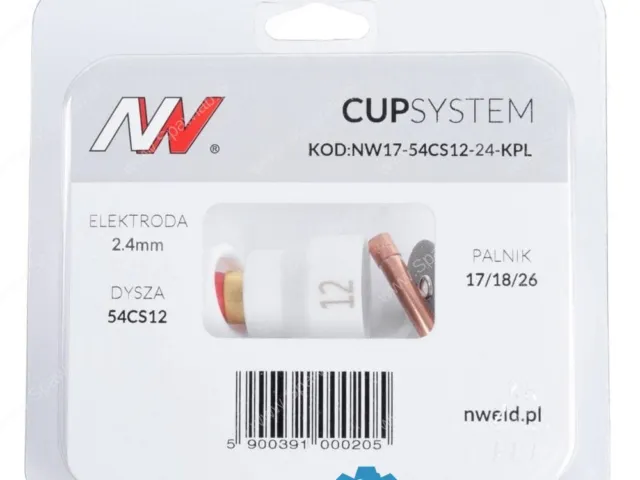

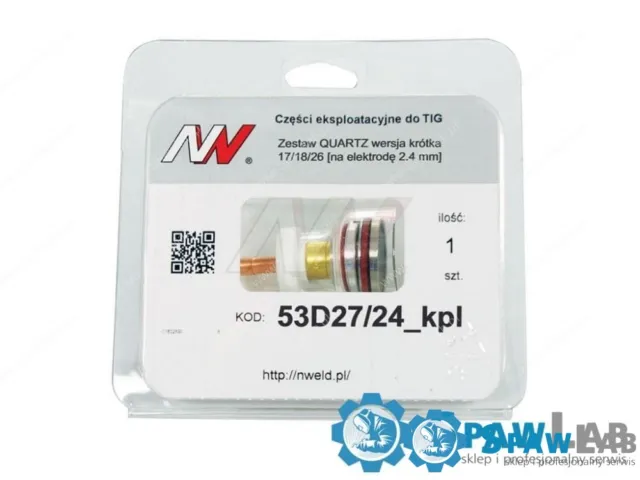

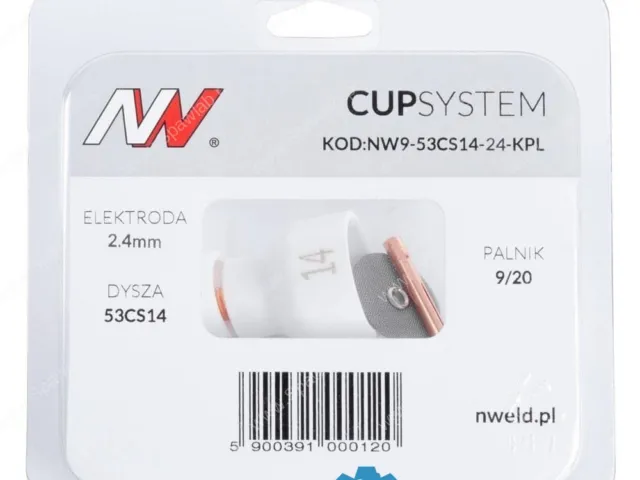

Match tungsten electrodes to current and type: WC20 grey and WL15 gold for DC, WL20 blue as a universal choice, WP green for AC on aluminium. In plasma the electrode and nozzle are a pair and are replaced together, because working on a worn electrode burns out the nozzle in minutes.
